1 x 8 HDMI PoE Splitter Extender, including 8 receivers, 40 Metres
Rated 3.5/5 based on 11 customer reviews
  • Free Delivery
    From $100
  • 99% Customers
    Feedbacks
  • 14 Days
    Returns
  • Payment
    Secure System
  • Australian
    Manufacturing

1 x 8 HDMI PoE Splitter Extender, including 8 receivers, 40 Metres

Available: In Stock
Wishlist
$598.00

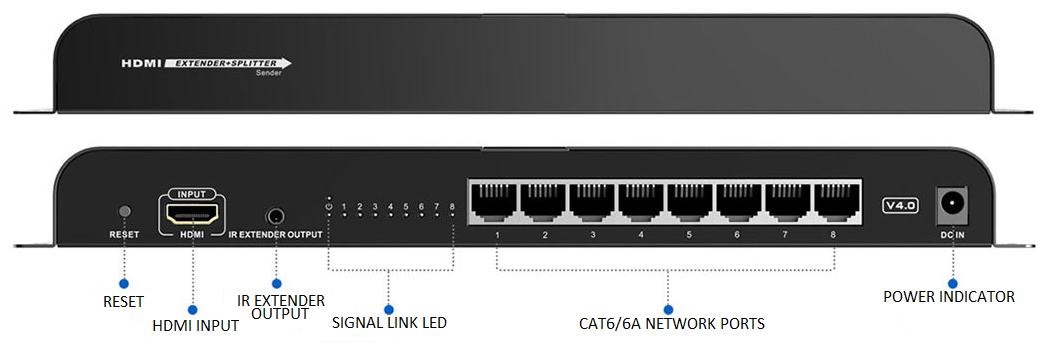

This HDMI extender splitter works with 8 HDMI CAT6 extender receivers to distribute and extend 1 HDMI source to 8 HDMI displays over single CAT6/6A/7 cable up to 40m/131ft.
The highest resolution supported is 1920x1080@60Hz, and it supports IR passback, EDID pass through.
Only one power adapter for the transmitter is needed, as the receivers are PoE enabled.
Ideal solution for HDMI exhibition, video conference and show center, etc.

Features:

Plug and play
Supports 20~60KHz IR pass back
Supports EDID Setting function
Supports one HDMI Loop-out
Wall-mounted function, easy installation
Compatible with CAT6/6A/7 network cables
Transmission extends up to 40m.
The highest resolution supported is 1920x1080@60Hz
Poe Enabled
Distribute 1 HDMI source to 8 HDMI displays over network cable simultaneously

  Specifications
 HDMI Signal  HDMI1.3, Compatible with HDCP1.2
 Input  1 x HDMI
 Output  8 x HDMI
 Supported Resolutions  480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
 Transmission Distance  Full HD resolution 1080p@60Hz up to 40 metres
 IR Signal  Supports 20~60kHz IR device
 EDID  Supports EDID manual setting function
 Operating Temperature  0-60 Degrees Celcius
 Power Supply  DC12V/3A
 Power Consumption  <24W
 Transmitter Dimensions & Weight  276 (L) x 95.98 (W) x 23 (H) mm @ 620 grams
 Receiver Dimensions & Weight  71.6 (L) x 66.6 (W) x 22.6 (H) mm @ 80 grams
 Colour  Black
